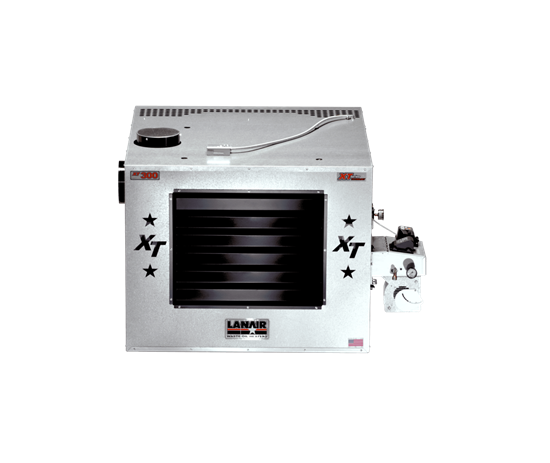

XT300 Waste Oil Heater

With a powerful heat range up to 300,000 BTUH, the XT300 can heat areas up to 10,000 sq. ft. and burns 100% used synthetic oil, along with other used fluids and diesel. This unit features a 47" x 46" x 36" cabinet, a 4,600 CFM axial fan, and an 8" Class A chimney pipe. It operates on a 120 V-60Hz 20 Amp and includes a 2 CFM compressed air system. Enhanced with an easy-to-remove burner, a non-continuous spark transformer, an hour meter, and a prime switch.

SKU: 81013005

Availability: Yes

Weight: 670

$11,675.86

Qty:

Apply For Monthly Installments

SPECIFICATIONS

Heating Area (sq. ft)**:

10,000

Heat Range (BTUH)*:

300,000

Fuel Input (GPH):

2.08

XT-300

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

Specifications:

Heat Range (BTUH)*	Up to 300,000
Fuel Input (GPH)	2.1
Fuel Type†	Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)**	Up to 10,000
Power Supply (AC)***	120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H)	47" x 46" x 36"
Hanging Weight (lbs.)	670
Axial Fan (CFM)	4,600
Chimney Pipe****	8" Class A
Compressed Air*****	2 CFM – 15-18 PSI
Combustion Chamber	10 Gauge CRS
Ductable Option	Yes
Chimney Location	Top and Side

SPECIFICATIONS

Manual Downloads

XT300 Heater Manual
