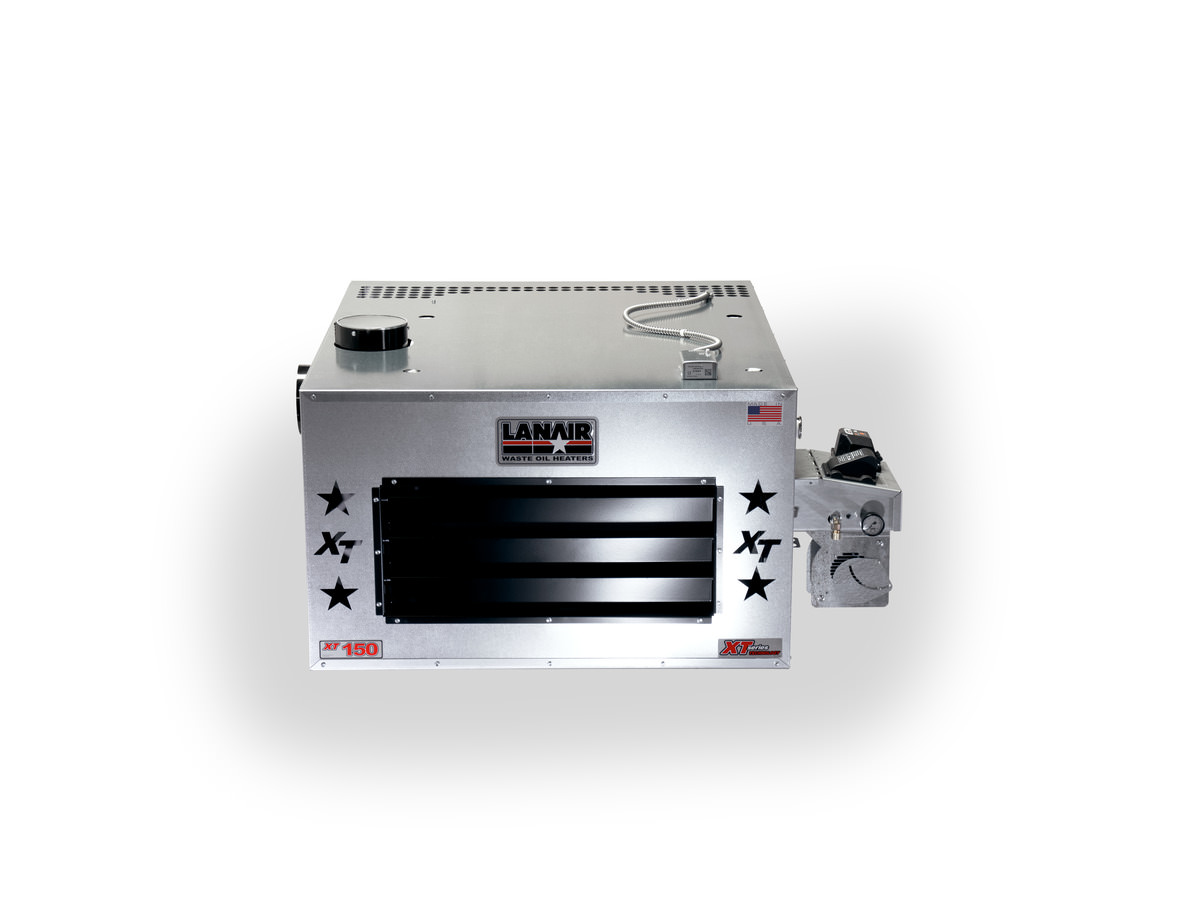

XT150 Waste Oil Heater

The XT-150 Waste Oil Heater now burns 100% used synthetic oil along with other used fluids. It comes standard with an easy access hinged chamber door for easy clean out. It also features a large clean-out side-access panel to the collector box.

Base SKU: 81011505

In Stock: Yes

Weight: 453.00 lbs

flame icon

Heats up to:3,500 sq. ft.

heating icon

Up to:150,000 BTU

fuel gauge

Fuel Input (GPH):1.07

Add to Cart
Request Info

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?


Heat Range (BTUH)* Up to 150,000
Fuel Input (GPH) 1.1
Fuel Type† Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)** Up to 3,500
Power Supply (AC)*** 120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H) 48" x 40" x 24"
Hanging Weight (lbs.) 453
Axial Fan (CFM) 2,600
Chimney Pipe**** 6" Class A
Compressed Air***** 2 CFM – 12-15 PSI
Combustion Chamber 12 Gauge CRS
Ductable Option No
Chimney Location Top and Side
