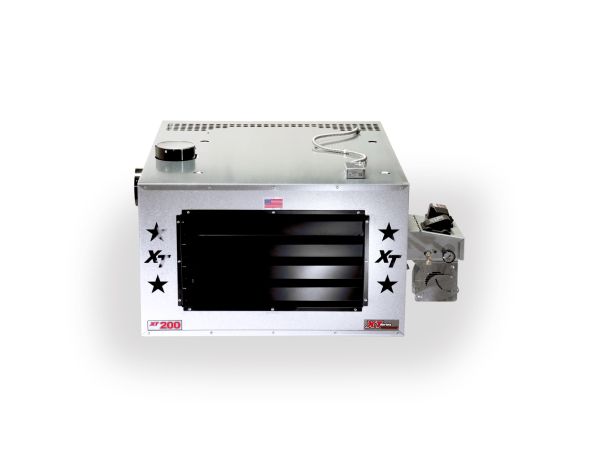

XT200 Waste Oil Heater

With up to 200,000 BTUH, the XT200 heats areas up to 5,000 sq. ft. and burns 100% used synthetic oil, along with other used fluids and diesel. This unit features a 48" x 40" x 24" cabinet, a 2,600 CFM axial fan, and a 6" Class A chimney pipe. It includes an easy-access hinged chamber door, a large side-access clean-out panel, a removable burner, a non-continuous spark transformer, an hour meter, and a prime switch.

Base SKU: 81012005

In Stock: Yes

Weight: 453.00 lbs

flame icon

Heats up to:5,000 sq. ft.

heating icon

Up to:200,000 BTU

fuel gauge

Fuel Input (GPH):1.44

$7,453.99
Add to Cart
Request Info

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

Specifications:

Heat Range (BTUH)* Up to 200,000
Fuel Input (GPH) 1.4
Fuel Type† Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft.)** Up to 5,000
Power Supply (AC)*** 120 V-60Hz 20 Amps
Cabinet Dimensions (L x W x H) 48" x 40" x 24"
Hanging Weight (lbs.) 453
Axial Fan (CFM) 2,600
Chimney Pipe**** 6" Class A
Compressed Air***** 2 CFM – 12-15 PSI
Combustion Chamber 12 Gauge CRS
Ductable Option Yes
Chimney Location Top and Side
