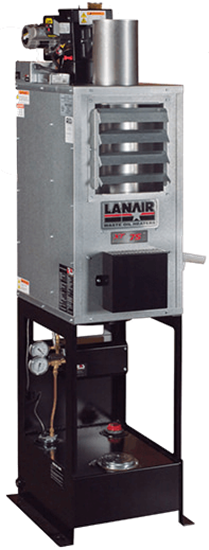

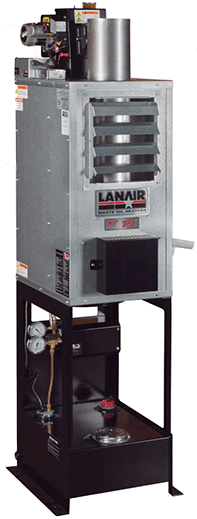

XT75 Waste Oil Heater

Designed for fitting in corners without cutting any. The XT-75 comes with all the standard features of our larger models, but with a vertical design for tight spaces. Customer-inspired and designed for small shops and DIY garages.

Weight: 210.00 lbs

flame icon

Heats up to:1,700 sq. ft.

heating icon

Up to:75,000 BTU

fuel gauge

Fuel Input (GPH):0.54

$4,024.79
Add to Cart

Need a Heater That Can Fit Into Tight Quarters Without Cutting Any Corners?

  • 75,000 BTU’s heat up to 1,700 sq. ft.
  • Burns #1 and #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATFM
  • Small footprint; only 21”W X 26”L floor mounted footprint
  • Onboard air compressor
  • Metering pump
  • Draft gauge
  • Cleanable in-tank strainer
  • Preassembled for easy installation

Specifications:

Heat Range (BTUH)* Up to 75,000
Fuel Input (GPH) 0.54
Fuel Type† Burns #1 and #2 fuel oil (diesel), used crankcase oil (conventional or synthetic), and used ATF
Heating Area (sq. ft.)** Up to 1,700
Power Supply (AC)*** 115 V-60Hz 8 Amps
Cabinet Dimensions (L x W x H) 26" x 21" x 75"
Hanging Weight (lbs.) 210
Axial Fan (CFM) 500
Chimney Pipe**** 6" Class A
Ductable Option No
Chimney Location Top
