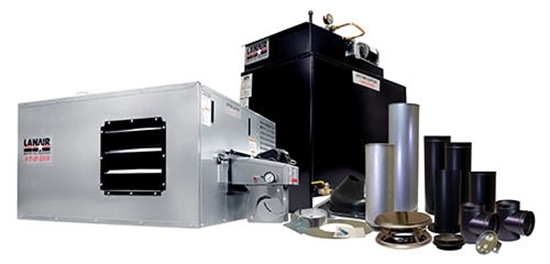

81013021- XTD300 Waste Oil Heater Value Package 1

Heater with 80 gallon tank and 8" roof kit

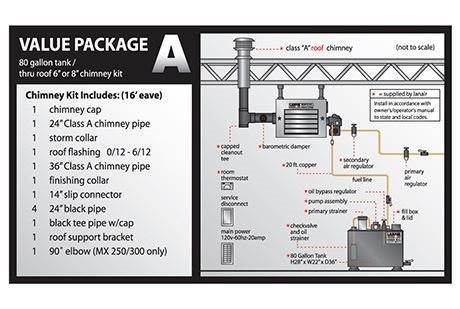

LanAir’s XTD300 Waste Oil Heater Value Package 1 features a heater with he ability to be ducted to heat separated spaces, an 80-gallon tank, and an 8" roof chimney kit. This model is designed to deliver up to 300,000 BTUH and for areas of up to 10,000 sq. ft. The included chimney kit provides everything needed for installation, including a chimney cap, a 24" Class A chimney pipe, a storm collar, a roof flashing for roof pitches from 0/12 to 6/12, a 36" Class A chimney pipe, a finishing collar, a 14" slip connector, four 24" black pipes, a black tee pipe with cap, a roof support bracket, and a 90° elbow. It operates on a 120 V, 60 Hz, 20 Amp power supply, with cabinet dimensions of 36" x 45.5" x 54" and a hanging weight of 696 lbs.

Please allow 5-7 business days for processing.

SKU: 81013021
Availability: Yes

Weight: 1255

$13,600.93

Apply For Monthly Installments

SPECIFICATIONS

Heat Range (BTUH)*:

300,000

Fuel Input (GPH):

2.14

Heating Area (sq. ft)**:

10,000

Factor in unstable fuel prices and escalating disposal costs and you'll see why purchasing a Lanair XT-D Series GHeater is indeed "The Right Choice at the Right Time!"

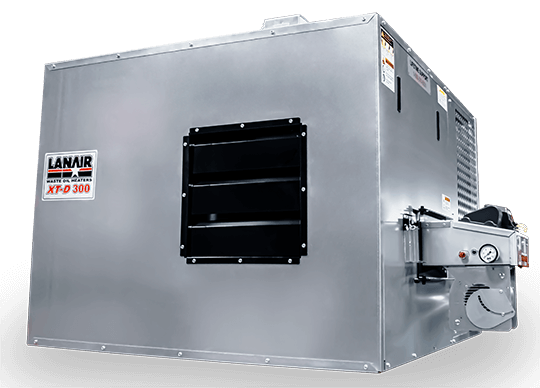

The XT-D 300 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate...buy Lanair!

SPECIFICATIONS

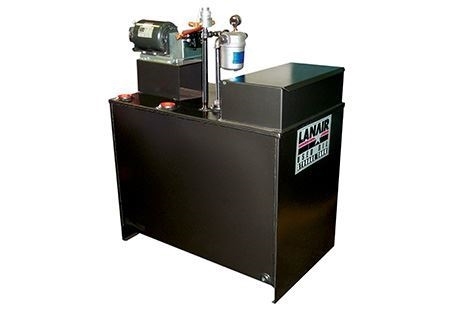

Fuel Tank Capacity 80 Gallons
Fuel Type Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Power Supply (AC) 120 V.6OHz 20 Amps
Cabinet Dimensions (H-W-D) 36" x 45.5" x 54"
Hanging weight (lbs.) 696
Chimney Pipe*** 8" Class A
Compressed Air**** 2 CFM - 15 - 18 PSI
Combustion Chamber 10 Gauge CRS
Ductable Option Yes
Chimney Location Top and Left Side

Manual Downloads

81013025 - XTD300 Heater Manual
