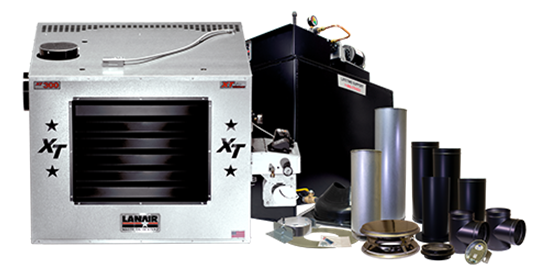

81013001 - XT300 WASTE OIL HEATER VALUE PACKAGE 1

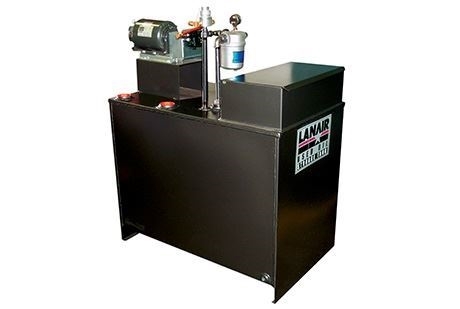

Heater and 80 gallon tank with thru roof 8" chimney kit
The XT300 Waste Oil Heater Value Package 1 delivers up to 300,000 BTUH, making it ideal for heating large areas up to 10,000 sq. ft. It includes a powerful heater with an 80-gallon tank and a thru-roof 8" chimney kit. The chimney kit comprises a chimney cap, 1 (24") Class A chimney pipe, 1 storm collar, 1 roof flashing (0/12-6/12), 1 (36") Class A chimney pipe, 1 finishing collar, 1 (14") slip connector, 4 (24") black pipes, 1 black tee pipe with cap, 1 roof support bracket, and 1 (90°) elbow. Fuel input is 2.14 GPH.

Base SKU: 81013001

In Stock: Yes

Weight: 210.00 lbs

$12,066.99

The XT Series heaters by Lanair are our most advanced units to date. We combine the latest burner technology with the latest lean manufacturing efficiencies to produce a quality, reliable heater at the lowest price in the industry. Factor in unstable fuel prices and escalating disposal costs and you'll see that purchasing a Lanair XT Series Heater is indeed... "The Right Choice at the Right Time!"

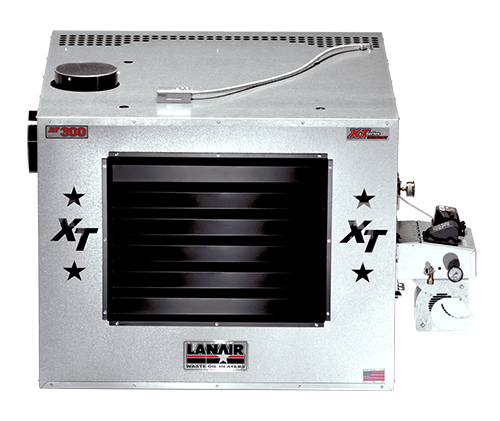

The XT-300 Waste Oil Heater is our largest unit pushing out up to 300,000 BTU's an hour. It features a fine grained galvanized (rust-resistant) cabinet to protect it in most shop environments, a high performance XT series burner that burns more efficient than any other burners to date, an internal fan to reduce excess noise in your shop, and adjustable locking louvers to direct air flow. All our units are UL listed so you can be assured that safety is a high priority with all Lanair products.

Products specifications
Heat Range (BTUH)* 300,000
Fuel Input (GPH) 2.14
Fuel Type†

Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid

Heating Area (sq. ft)** 10,000
Power Supply (AC) 120 V.6OHz 20 Amps
Cabinet Dimensions (H-W-D) 36" x 46" x 48"
Hanging weight (lbs.) 630
Axial Fan (CFM) 4,600
Chimney Pipe*** 8" Class A
Compressed Air**** 2 CFM - 15 - 18 PSI
Combustion Chamber 10 Gauge CRS
Ductable Option Call
Chimney Location Top

*BTUH value varies with fuel type
**The suggested heating area is based on building with minimal heat loss due to open door, construction, materials, windows, insulation, etc...
*** Chimney package is optional
****Customer supplied. Source must be capable of producing 2.0 CFM @ 60 PSI.

† Stay away from gear lubes, they do not burn and will cause additional maintenance for your waste oil heater.
Hazardous waste is illegal to burn in a waste oil heater.
The EPA of the USA does not allow the burning of Brake fluid, and it is illegal to burn in a waste oil heater.
There is no UL safety standard for the burning of Used Cooking Oil (vegetable oil) at this time. It should not be burned.

Note: International customers should check their local regulations, as ‘what you can legally burn’ may change.

  • Introduction to Lanair Waste Oil Heaters

  • How to Assemble a Lanair Waste Oil Heater
