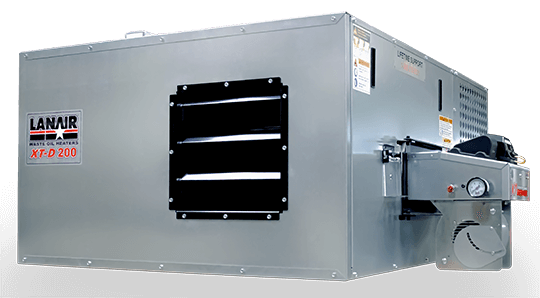

81012023- XTD200 Waste Oil Heater Value Package 3

Heater with 215 gallon tank and 6" roof kit

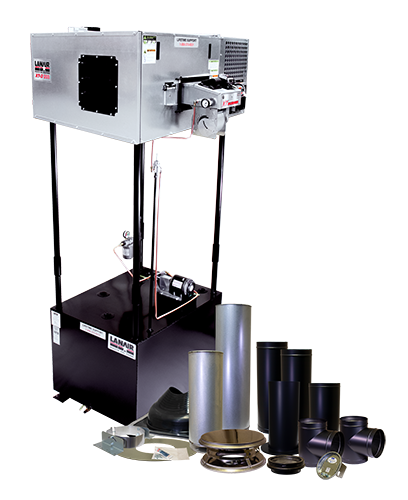

The XTD200 Waste Oil Heater Value Package 3 features a generous 215-gallon tank, a 6" roof chimney kit, and the ability to be ducted to heat separated spaces. It has a maximum output of 200,000 BTUH and up to 5,000 sq. ft. The chimney kit includes a chimney cap, a 24" Class A chimney pipe, a storm collar, and a roof flashing suitable for roof pitches ranging from 0/12 to 6/12. It also comes with a 36" Class A chimney pipe, a finishing collar, a 14" slip connector, four 24" black pipes, a black tee pipe with cap, a roof support bracket, and a 90° elbow. The chimney is located on the top and left side of the unit. Please allow 5-7 business days for processing.

Please allow 5-7 business days for processing.

SKU: 81012023
Availability: Yes

Weight: 210

$10,678.72

Apply For Monthly Installments

SPECIFICATIONS

Heat Range (BTUH)*:

200,000

Fuel Input (GPH):

1.44

Heating Area (sq. ft)**:

5,000

The XT-200 Waste Oil Heater now burns 100% used synthetic oil along with other used fluids. It comes standard with an easy access hinged chamber door for easy clean out. It also features a large clean-out side access panel to the collector box. Some of the new improvements made to the XT models are: easy to remove burner, a noncontinuous spark transformer, an hour meter, and a prime switch. All of these features make it easy for those who compare...buy Lanair!

SPECIFICATIONS

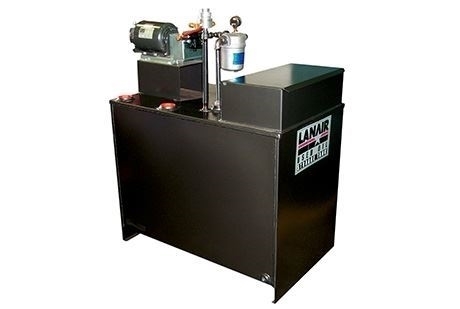

Fuel Tank Capacity 215 Gallons
Fuel Type Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Power Supply (AC) 120 V.6OHz 20 Amps
Cabinet Dimensions (H-W-D) 24" x 40.5" x 56"
Hanging weight (lbs.) 523
Chimney Pipe*** 6" Class A
Compressed Air**** 2 CFM - 12 - 15 PSI
Combustion Chamber 12 Gauge CRS
Ductable Option Yes
Chimney Location Top and Left Side

Manual Downloads

81012025 - XTD200 Heater Manual
