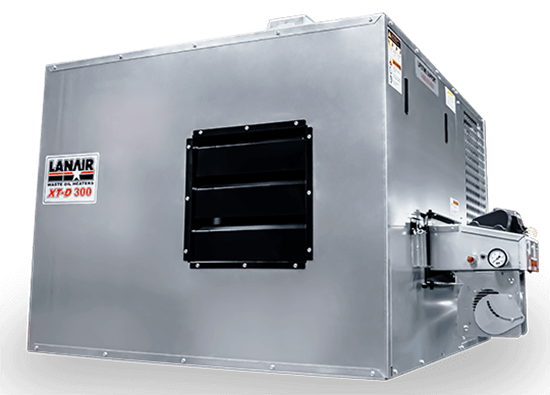

XTD300 Waste Oil Heater with galvanized steel cabinet, 8-inch chimney connection, and 300,000 BTUH ductable heating capacity for up to 10,000 sq. ft.

81013025 – XTD300 Waste Oil Heater

Includes XTD300 Waste Oil Heater

With a heat output of 300,000 BTUH, and the ability to be ducted to heat separated spaces the XTD300 can heat up to 10,000 sq. ft. and burns 100% used synthetic oil, used crankcase oil (up to 50 wt), used #1 and #2 fuel oil, and used automatic transmission fluid. It features a 36" x 45.5" x 54" cabinet, an 8" Class A chimney pipe, and operates on (2) 120 V-60Hz legs. It requires a 2 CFM compressed air system and a 10-gauge CRS combustion chamber.

Please allow 5-7 business days for processing.

SKU: 81013025
Availability: Yes

Weight: 696

$12,230.67

Apply For Monthly Installments

Factor in unstable fuel prices and escalating disposal costs and you'll see why purchasing a Lanair XT-D Series GHeater is indeed "The Right Choice at the Right Time!"

The XT-D 300 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate...buy Lanair!

SPECIFICATIONS

Heat Range (BTUH)* 300,000
Fuel Input (GPH) 2.1
Fuel Type Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft)** 10,000
Power Supply (AC) (2)-120 V-60Hz 2 Legs
Cabinet Dimensions (H-W-D) 36" x 45.5" x 54"
Hanging weight (lbs.) 696
Chimney Pipe*** 8" Class A
Compressed Air**** 2 CFM - 15 - 18 PSI
Combustion Chamber 10 Gauge CRS
Ductable Option Yes
Chimney Location Top and Left Side

Manual Downloads

XTD300 Sell Sheet

XTD300 Heater Manual
