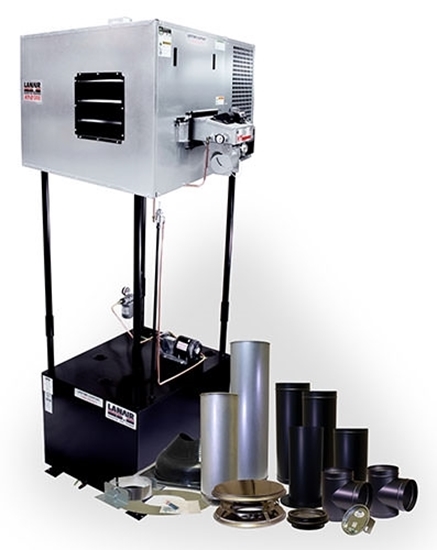

81013023- XTD300 Waste Oil Heater Value Package 3

Heater with 215 gallon tank and thru roof 8" chimney kit

Our XTD300 Waste Oil Heater Value Package 3 includes a 215-gallon tank and an 8” thru-roof chimney kit. This package includes a heater with a substantial heat range of 300,000 BTUH, capable of warming areas up to 10,000 sq. ft with the ability to be ducted to heat separated spaces. The chimney kit features a chimney cap, a 24" Class A chimney pipe, a storm collar, roof flashing (suitable for roof pitches from 0/12 to 6/12), a 36" Class A chimney pipe, a finishing collar, a 14" slip connector, four 24" black pipes, a black tee pipe with cap, a roof support bracket, and a 90° elbow.
Please allow 5-7 business days for processing.

SKU: 81013023

Availability: Yes

Weight: 1255

$14,259.56

Qty:

Apply For Monthly Installments

Factor in unstable fuel prices and escalating disposal costs and you'll see why purchasing a Lanair XT-D Series GHeater is indeed "The Right Choice at the Right Time!"

The XT-D 300 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate...buy Lanair!

SPECIFICATIONS

Heat Range (BTUH)*	300,000
Fuel Input (GPH)	2.14
Fuel Type	Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Heating Area (sq. ft)**	10,000
Power Supply (AC)	120 V.6OHz 20 Amps
Cabinet Dimensions (H-W-D)	36" x 45.5" x 54"
Hanging weight (lbs.)	696
Chimney Pipe***	8" Class A
Compressed Air****	2 CFM - 15 - 18 PSI
Combustion Chamber	10 Gauge CRS
Ductable Option	Yes
Chimney Location	Top and Left Side

Manual Downloads

81013025 - XTD300 Heater Manual
