81012025

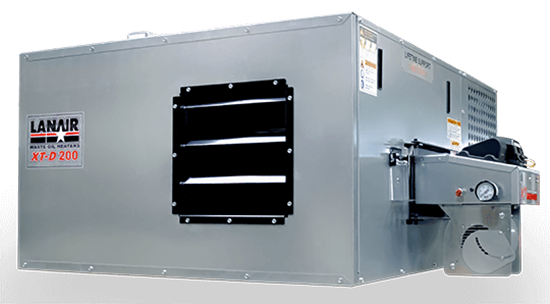

81012025 - XTD200 Waste Oil Heater

Includes XTD200 Waste Oil Heater
The XTD200 can heat up to 200,000 BTUH and the ability to be ducted to heat separated spaces 5,000 sq. ft. and is compatible with waste oil, used crankcase oil (up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, and used automatic transmission fluid. This heater features a 24" x 40.5" x 56" cabinet, a 6" Class A chimney pipe, and operates on (2) 120 V-60Hz legs. It includes a 2 CFM compressed air system and a 12-gauge CRS combustion chamber.
Please allow 5-7 business days for processing.
SKU: 81012025
Availability: Yes

Weight: 523

$8,616.30

Apply For Monthly Installments

SPECIFICATIONS

Heat Range (BTUH)*:

200,000

Fuel Input (GPH):

1.4

Heating Area (sq. ft)**:

5,000

Factor in unstable fuel prices and escalating disposal costs and you'll see why purchasing a Lanair XT-D Series GHeater is indeed "The Right Choice at the Right Time!"

The XT-D 200 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate...buy Lanair!

SPECIFICATIONS

Fuel Type Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
Power Supply (AC) (2)-120 V-60Hz 2 Legs
Cabinet Dimensions (H-W-D) 24" x 40.5" x 56"
Hanging weight (lbs.) 523
Chimney Pipe*** 6" Class A
Compressed Air**** 2 CFM - 12 - 15 PSI
Combustion Chamber 12 Gauge CRS
Ductable Option Yes
Chimney Location Top and Left Side

Manual Downloads

XTD200 Sell Sheet

XTD200 Heater Manual
