81012021 - XTD200 Waste Oil Heater Value Package 1
Heater with 80 gallon tank and 6" roof kit

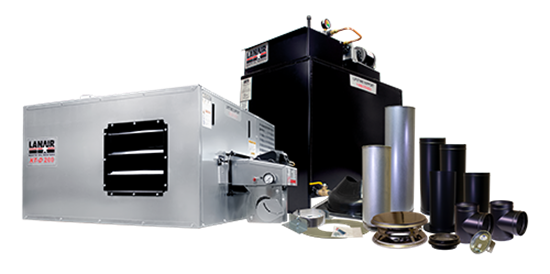

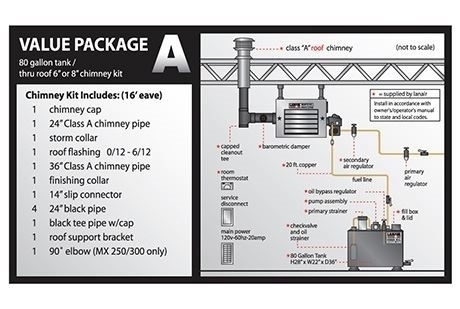

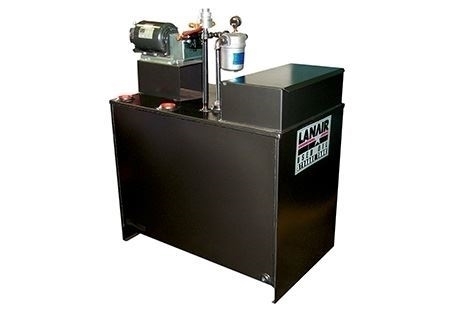

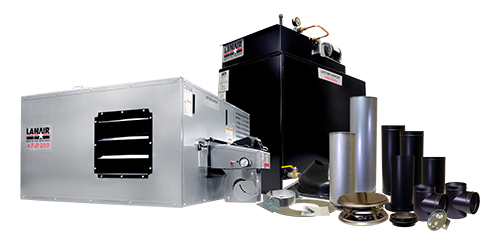

Lanair's XTD200 Waste Oil Heater Value Package 1 includes an 80-gallon tank, a 6" roof chimney kit, and the ability to be ducted to heat separated spaces. The chimney kit features 1 chimney cap, 1 (24") Class A chimney pipe, 1 storm collar, 1 roof flashing (0/12-6/12), 1 (36") Class A chimney pipe, 1 finishing collar, 1 (14") slip connector, 4 (24") black pipes, 1 black tee pipe with cap, 1 roof support bracket, and 1 (90°) elbow. This heater delivers up to 200,000 BTUH, ideal for heating areas up to 5,000 sq. ft. It operates on a 120 V, 60 Hz, 20 Amp power supply and features a 12-gauge CRS combustion chamber, axial fan with 2,600 CFM, and requires 2 CFM of compressed air at 12-15 PSI.
Please allow 5-7 business days for processing.
$10,020.08
81012021 - XTD200 Waste Oil Heater Value Package 1
1
Finance for as low as
Click Here

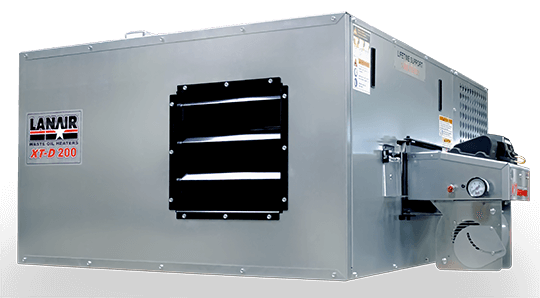

The XT-200 Waste Oil Heater now burns 100% used synthetic oil along with other used fluids. It comes standard with an easy access hinged chamber door for easy clean out. It also features a large clean-out side access panel to the collector box. Some of the new improvements made to the XT models are: easy to remove burner, a noncontinuous spark transformer, an hour meter, and a prime switch. All of these features make it easy for those who compare...buy Lanair!
81012021 - XTD200 Waste Oil Heater Value Package 1
Products specifications
|
Heat Range (BTUH)*
|
200,000
|
|
Fuel Input (GPH)
|
1.44
|
| Fuel Type† |
Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
|
Fuel Type
|
Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel)
|
|
Heating Area (sq. ft)**
|
5,000
|
|
Power Supply (AC)
|
120 V.6OHz 20 Amps
|
|
Cabinet Dimensions (H-W-D)
|
24" x 40.5" x 56"
|
|
Hanging weight (lbs.)
|
523
|
|
Chimney Pipe***
|
6" Class A
|
|
Compressed Air****
|
2 CFM - 12 - 15 PSI
|
|
Combustion Chamber
|
12 Gauge CRS
|
|
Ductable Option
|
Yes
|
|
Chimney Location
|
Top and Left Side
|
